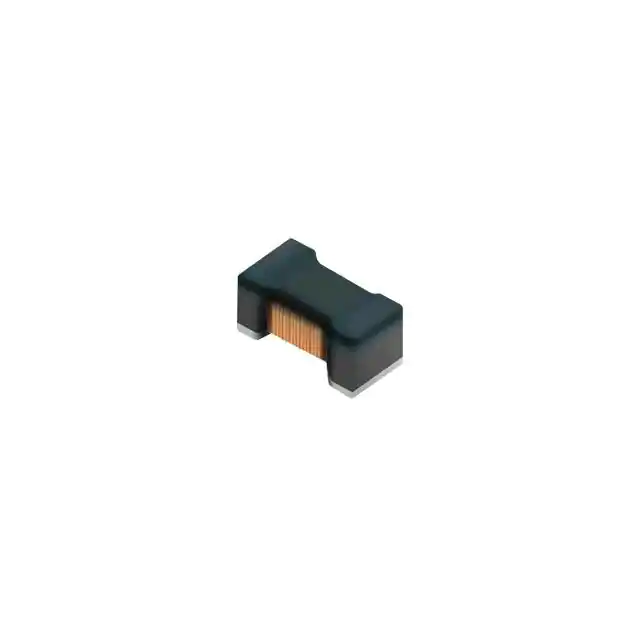

| Part Number | LQW15CE1R5M10D | LQW15CN1R5M10D | LQW15CE1R0M10D |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 95 mA | 190 mA | 135 mA |
| Current - Saturation (Isat) | 350mA | - | 480mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max | 1.5Ohm Max | 940mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 120MHz | 120MHz | 120MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 100 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1005 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | 0402 | - | 0402 |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
