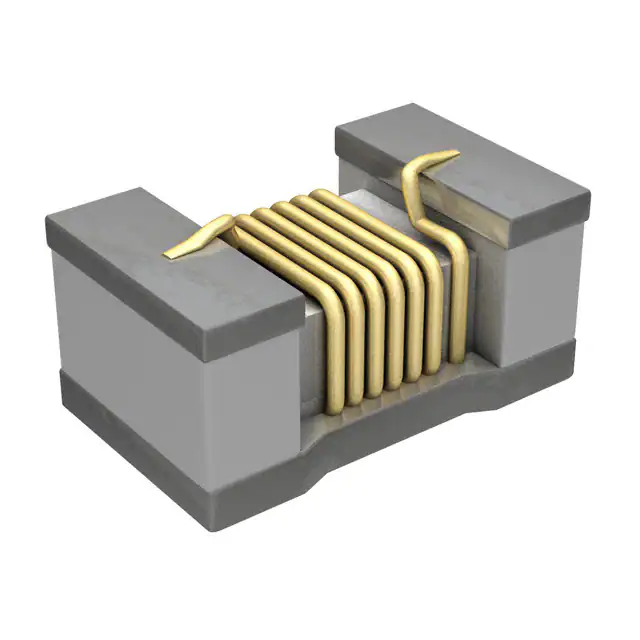

| Part Number | LQW15AN91NJ00D | LQW15AN91NG00D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Air | Non-Magnetic |
| Inductance | 91 nH | 91 nH |
| Tolerance | ±5% | ±2% |
| Current Rating (Amps) | 125 mA | 125 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.38Ohm Max | 2.38Ohm Max |
| Q @ Freq | 20 @ 150MHz | 20 @ 150MHz |
| Frequency - Self Resonant | 2.1GHz | 2.1GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) |
