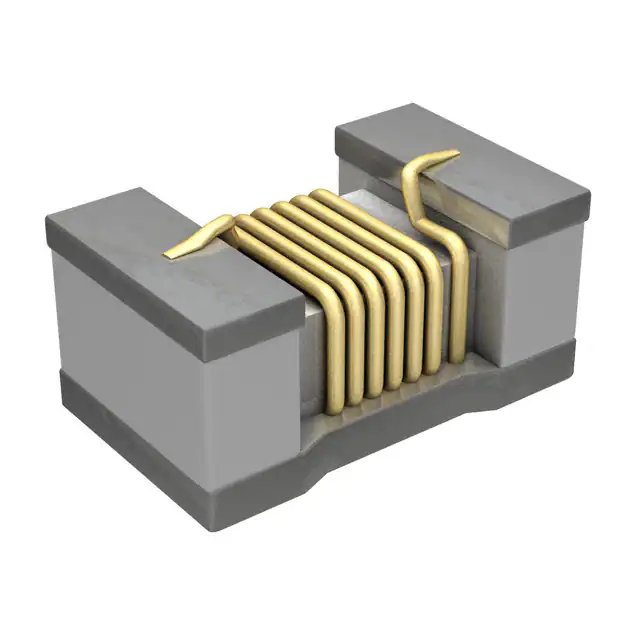

| Part Number | LQW15AN1N5B0ZD | LQW15AN1N5B00D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 1.5 nH | 1.5 nH |
| Tolerance | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 1 A | 1 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 30mOhm Max | 30mOhm Max |
| Q @ Freq | 10 @ 250MHz | 10 @ 250MHz |
| Frequency - Self Resonant | 18GHz | 18GHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | - |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) |
