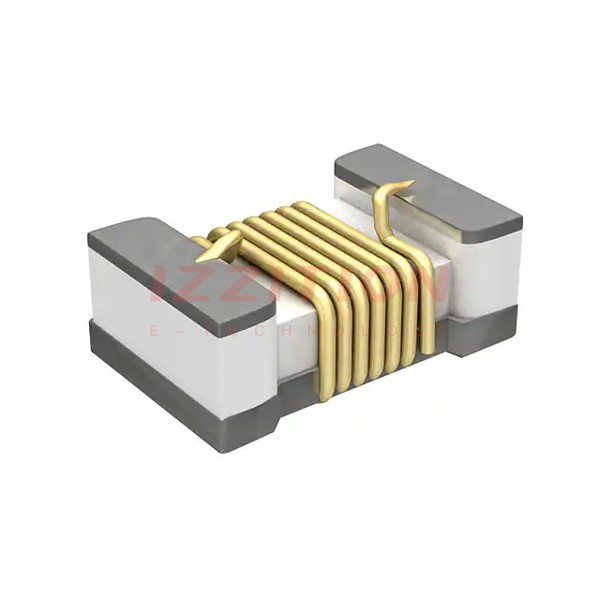

| Part Number | LQW04AN10NJ00D | LQW04AN14NJ00D | LQW04AN11NJ00D | LQW04AN12NJ00D | LQW04AN13NJ00D | LQW04AN15NJ00D | LQW04AN16NJ00D | LQW04AN18NJ00D | LQW04AN19NJ00D | LQW04AN20NJ00D | LQW04AN10NH00D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | Non-Magnetic | - | - | - | - | - | - | - | - | - |
| Inductance | 10 nH | 14 nH | 11 nH | 12 nH | 13 nH | 15 nH | 16 nH | 18 nH | 19 nH | 20 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Current Rating (Amps) | 330 mA | 280 mA | 310 mA | 310 mA | 280 mA | 240 mA | 270 mA | 220 mA | 160 mA | 210 mA | 330 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 260mOhm Max | 340mOhm Max | 280mOhm Max | 280mOhm Max | 340mOhm Max | 480mOhm Max | 380mOhm Max | 540mOhm Max | 730mOhm Max | 560mOhm Max | 260mOhm Max |
| Q @ Freq | 20 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 15 @ 250MHz | 20 @ 250MHz |
| Frequency - Self Resonant | 7GHz | 6GHz | 7GHz | 6GHz | 6GHz | 5.5GHz | 5.5GHz | 5GHz | 5GHz | 5GHz | 7GHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) | 0302 (0804 Metric) |
| Supplier Device Package | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) | 03015 (0804 Metric) |
| Size / Dimension | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.031" L x 0.016" W (0.80mm x 0.40mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
