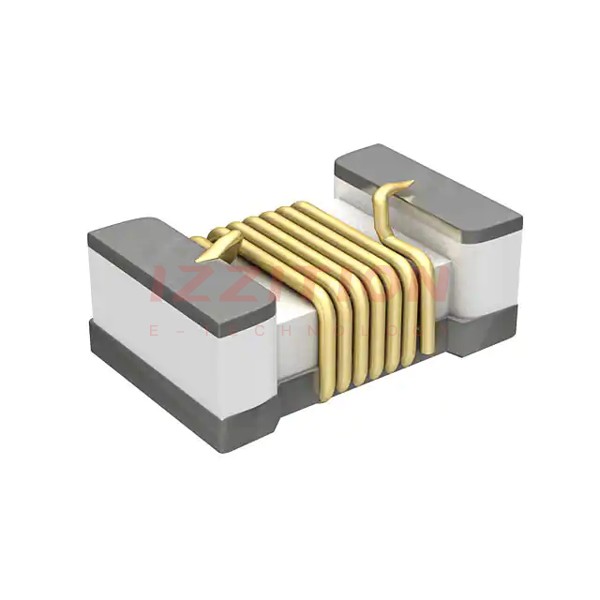

| Part Number | LQW03AW10NJ00D | LQW03AW13NJ00D | LQW03AW15NJ00D | LQW03AW12NJ00D | LQW03AW11NJ00D | LQW03AW14NJ00D |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | Non-Magnetic | - | - | - | - |
| Inductance | 10 nH | 13 nH | 15.5 nH | 12.5 nH | 11 nH | 13.5 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 250 mA | 280 mA | 230 mA | 280 mA | 260 mA | 240 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 460mOhm Max | 540mOhm Max | 600mOhm Max | 540mOhm Max | 470mOhm Max | 530mOhm Max |
| Q @ Freq | 37 @ 900MHz | 39 @ 900MHz | 38 @ 900MHz | 39 @ 900MHz | 37 @ 900MHz | 37 @ 900MHz |
| Frequency - Self Resonant | 7.2GHz | 5.9GHz | 5.7GHz | 6GHz | 7GHz | 6GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.021" L x 0.016" W (0.53mm x 0.40mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
