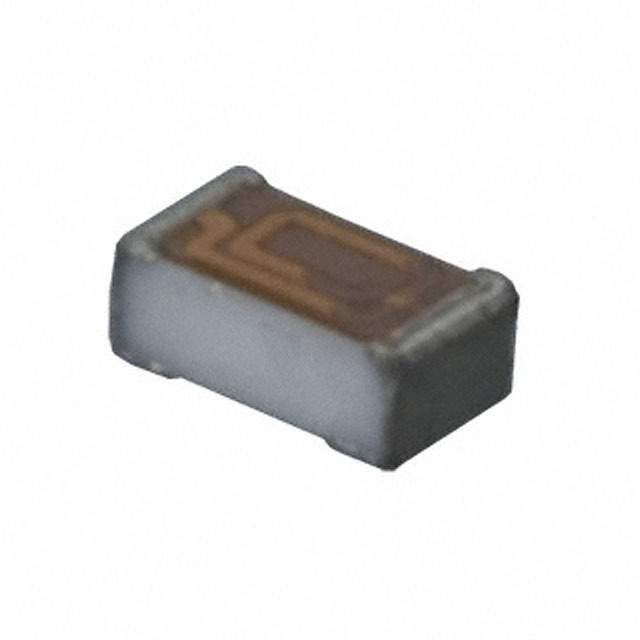

| Part Number | LQP18MN8N2C02D | LQP18MN2N2C02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 8.2 nH | 2.2 nH |
| Tolerance | ±0.2nH | ±0.2nH |
| Current Rating (Amps) | 150 mA | 250 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 800mOhm Max | 400mOhm Max |
| Q @ Freq | 17 @ 500MHz | 17 @ 500MHz |
| Frequency - Self Resonant | 3.6GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) |
