Please send RFQ , we will respond immediately.

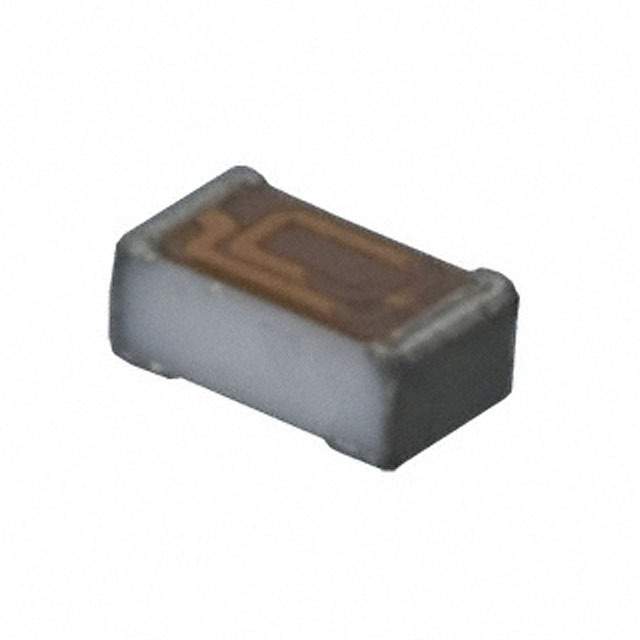

| Part Number | LQP15MN4N3B02D | LQP15MN4N7B02D | LQP15MN1N3B02D | LQP15MN3N3B02D |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 4.3 nH | 4.7 nH | 1.3 nH | 3.3 nH |
| Tolerance | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 160 mA | 160 mA | 280 mA | 190 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 600mOhm Max | 600mOhm Max | 200mOhm Max | 400mOhm Max |
| Q @ Freq | 13 @ 500MHz | 13 @ 500MHz | 13 @ 500MHz | 13 @ 500MHz |
| Frequency - Self Resonant | 6GHz | 6GHz | 6GHz | 6GHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | 0.018" (0.45mm) |
