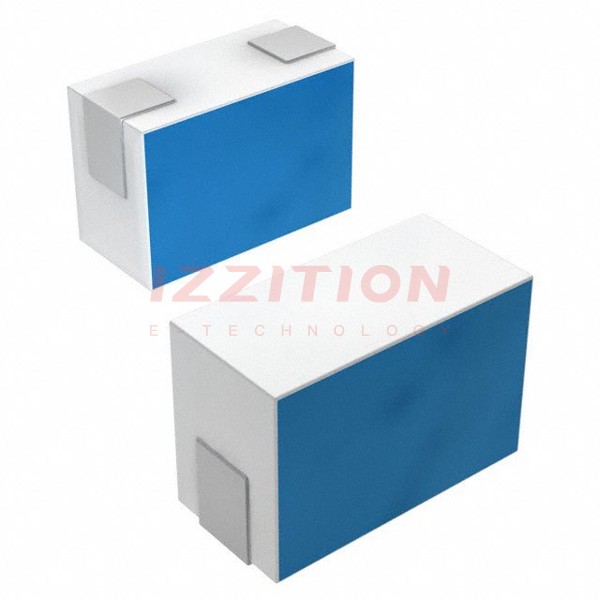

| Part Number | LQP03TQ10NJ02D | LQP03TQ11NJ02D | LQP03TQ13NJ02D | LQP03TQ12NJ02D | LQP03TQ10NH02D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 10 nH | 11 nH | 13 nH | 12 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±3% |
| Current Rating (Amps) | 250 mA | 250 mA | 250 mA | 250 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 690mOhm Max | 690mOhm Max | 690mOhm Max | 690mOhm Max | 690mOhm Max |
| Q @ Freq | 17 @ 500MHz | 17 @ 500MHz | 17 @ 500MHz | 17 @ 500MHz | 17 @ 500MHz |
| Frequency - Self Resonant | 4.5GHz | 3.7GHz | 3.7GHz | 3.7GHz | 4.5GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
