Please send RFQ , we will respond immediately.

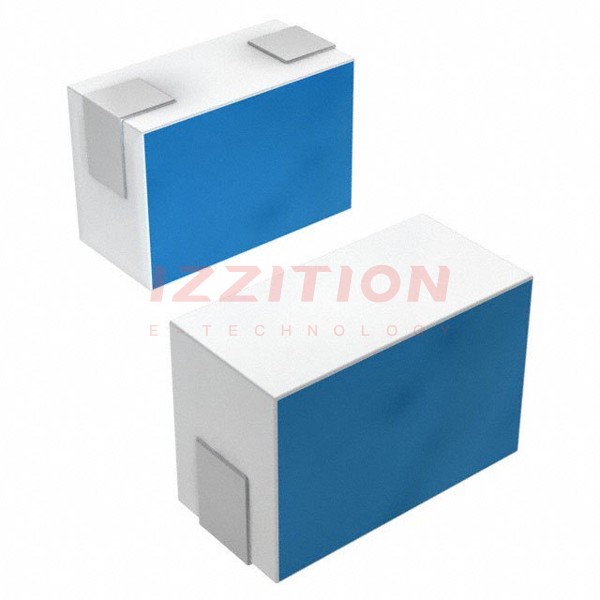

| Part Number | LQP03TN56NHZ2D | LQP03TN56NJZ2D | LQP03TN36NHZ2D | LQP03TN51NHZ2D | LQP03TN56NH02D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | Thick Film |
| Material - Core | - | - | - | - | Non-Magnetic |
| Inductance | - | - | - | - | 56 nH |
| Tolerance | - | - | - | - | ±3% |
| Current Rating (Amps) | - | - | - | - | 100 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | - | - | - | - | Unshielded |
| DC Resistance (DCR) | - | - | - | - | 3.9Ohm Max |
| Q @ Freq | - | - | - | - | 9 @ 300MHz |
| Frequency - Self Resonant | - | - | - | - | 1.2GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | - | - | -55°C ~ 125°C |
| Inductance Frequency - Test | - | - | - | - | 300 MHz |
| Features | - | - | - | - | - |
| Mounting Type | - | - | - | - | Surface Mount |
| Package / Case | - | - | - | - | 0201 (0603 Metric) |
| Supplier Device Package | - | - | - | - | 0201 (0603 Metric) |
| Size / Dimension | - | - | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - | - | - | - | 0.013" (0.33mm) |
