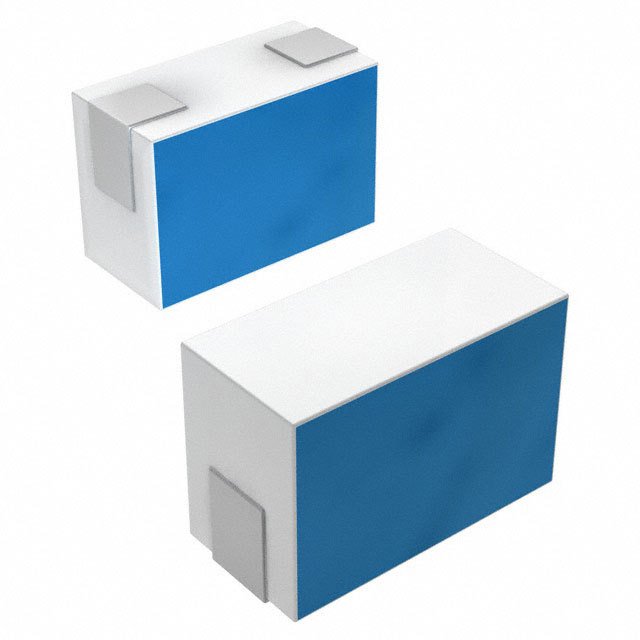

| Part Number | LQP03TN4N7HZ2D | LQP03TN4N7JZ2D | LQP03TN4N3HZ2D | LQP03TN4N7H02D |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Thick Film | - | - | Thick Film |
| Material - Core | Non-Magnetic | - | - | Non-Magnetic |
| Inductance | 4.7 nH | - | - | 4.7 nH |
| Tolerance | ±3% | - | - | ±3% |
| Current Rating (Amps) | 350 mA | - | - | 350 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | - | - | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | - | - | 400mOhm Max |
| Q @ Freq | 14 @ 500MHz | - | - | 14 @ 500MHz |
| Frequency - Self Resonant | 4.4GHz | - | - | 4.4GHz |
| Ratings | AEC-Q200 | - | - | - |
| Operating Temperature | -55°C ~ 125°C | - | - | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | - | - | 500 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | - | - | Surface Mount |
| Package / Case | 0201 (0603 Metric) | - | - | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | - | - | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | - | - | 0.013" (0.33mm) |
