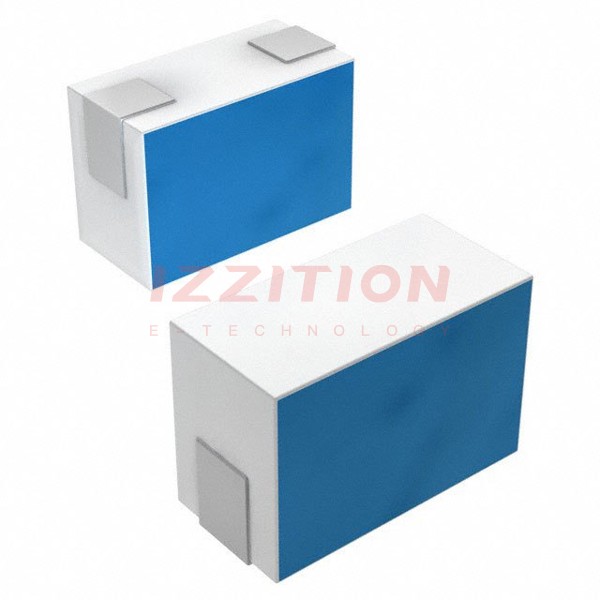

| Part Number | LQP03TN33NHZ2D | LQP03TN33NJZ2D | LQP03TN43NHZ2D | LQP03TN39NHZ2D | LQP03TN36NHZ2D | LQP03TN30NHZ2D | LQP03TN33NH02D |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | Thick Film | - | - | - | - | Thick Film |
| Material - Core | - | Non-Magnetic | - | - | - | - | Non-Magnetic |
| Inductance | - | 33 nH | - | - | - | - | 33 nH |
| Tolerance | - | ±5% | - | - | - | - | ±3% |
| Current Rating (Amps) | - | 120 mA | - | - | - | - | 120 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | - | Unshielded | - | - | - | - | Unshielded |
| DC Resistance (DCR) | - | 2.95Ohm Max | - | - | - | - | 2.95Ohm Max |
| Q @ Freq | - | 9 @ 300MHz | - | - | - | - | 9 @ 300MHz |
| Frequency - Self Resonant | - | 1.7GHz | - | - | - | - | 1.7GHz |
| Ratings | - | AEC-Q200 | - | - | - | - | - |
| Operating Temperature | - | -55°C ~ 125°C | - | - | - | - | -55°C ~ 125°C |
| Inductance Frequency - Test | - | 500 MHz | - | - | - | - | 300 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | - | Surface Mount | - | - | - | - | Surface Mount |
| Package / Case | - | 0201 (0603 Metric) | - | - | - | - | 0201 (0603 Metric) |
| Supplier Device Package | - | 0201 (0603 Metric) | - | - | - | - | 0201 (0603 Metric) |
| Size / Dimension | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - | 0.013" (0.33mm) | - | - | - | - | 0.013" (0.33mm) |
