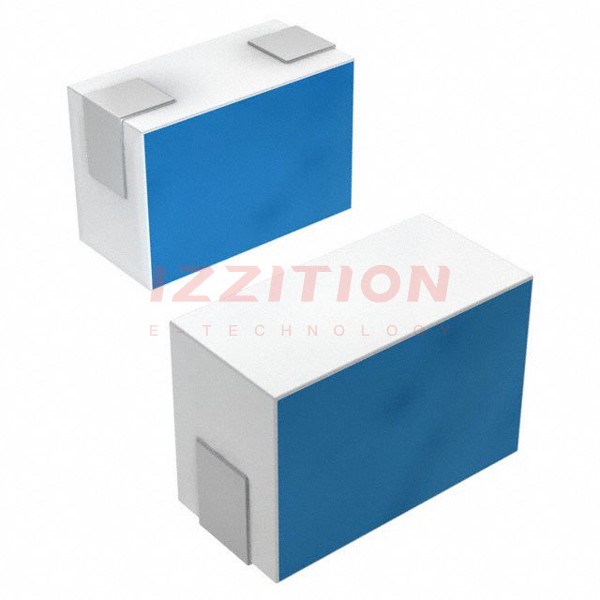

| Part Number | LQP03TN22NHZ2D | LQP03TN22NJZ2D | LQP03TN24NHZ2D | LQP03TN27NHZ2D | LQP03TN12NHZ2D | LQP03TN20NHZ2D | LQP03TN22NH02D |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | Thick Film | Thick Film | - | Thick Film |
| Material - Core | - | - | - | Non-Magnetic | Non-Magnetic | - | Non-Magnetic |
| Inductance | - | - | - | 27 nH | 12 nH | - | 22 nH |
| Tolerance | - | - | - | ±3% | ±3% | - | ±3% |
| Current Rating (Amps) | - | - | - | 140 mA | 250 mA | - | 150 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | - | - | - | Unshielded | Unshielded | - | Unshielded |
| DC Resistance (DCR) | - | - | - | 2.3Ohm Max | 700mOhm Max | - | 1.9Ohm Max |
| Q @ Freq | - | - | - | 12 @ 500MHz | 12 @ 500MHz | - | 12 @ 500MHz |
| Frequency - Self Resonant | - | - | - | 2GHz | 2.9GHz | - | 2.2GHz |
| Ratings | - | - | - | AEC-Q200 | AEC-Q200 | - | - |
| Operating Temperature | - | - | - | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C |
| Inductance Frequency - Test | - | - | - | 500 MHz | 500 MHz | - | 500 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | - | - | - | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | - | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) | - | 0201 (0603 Metric) |
| Supplier Device Package | - | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) | - | 0201 (0603 Metric) |
| Size / Dimension | - | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - | - | - | 0.013" (0.33mm) | 0.013" (0.33mm) | - | 0.013" (0.33mm) |
