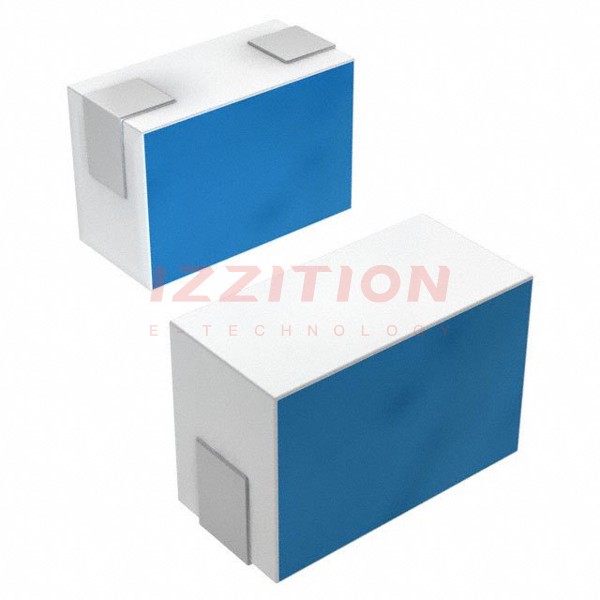

| Part Number | LQP03TN13NHZ2D | LQP03TN13NJZ2D | LQP03TN15NHZ2D | LQP03TN18NHZ2D | LQP03TN16NHZ2D | LQP03TN10NHZ2D | LQP03TN11NHZ2D | LQP03TN12NHZ2D | LQP03TN13NH02D |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | Thick Film | Thick Film | - | Thick Film | - | Thick Film | Thick Film |
| Material - Core | - | - | Non-Magnetic | Non-Magnetic | - | Non-Magnetic | - | Non-Magnetic | Non-Magnetic |
| Inductance | - | - | 15 nH | 18 nH | - | 10 nH | - | 12 nH | 13 nH |
| Tolerance | - | - | ±3% | ±3% | - | ±3% | - | ±3% | ±3% |
| Current Rating (Amps) | - | - | 250 mA | 200 mA | - | 250 mA | - | 250 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | - | - | Unshielded | Unshielded | - | Unshielded | - | Unshielded | Unshielded |
| DC Resistance (DCR) | - | - | 700mOhm Max | 800mOhm Max | - | 700mOhm Max | - | 700mOhm Max | 800mOhm Max |
| Q @ Freq | - | - | 12 @ 500MHz | 12 @ 500MHz | - | 14 @ 500MHz | - | 12 @ 500MHz | 12 @ 500MHz |
| Frequency - Self Resonant | - | - | 2.6GHz | 2.2GHz | - | 3.2GHz | - | 2.9GHz | 2.6GHz |
| Ratings | - | - | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | - | AEC-Q200 | - |
| Operating Temperature | - | - | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | - | - | 500 MHz | 500 MHz | - | 500 MHz | - | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | - | - | Surface Mount | Surface Mount | - | Surface Mount | - | Surface Mount | Surface Mount |
| Package / Case | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) | - | 0201 (0603 Metric) | - | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) | - | 0201 (0603 Metric) | - | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - | - | 0.013" (0.33mm) | 0.013" (0.33mm) | - | 0.013" (0.33mm) | - | 0.013" (0.33mm) | 0.013" (0.33mm) |
