Please send RFQ , we will respond immediately.

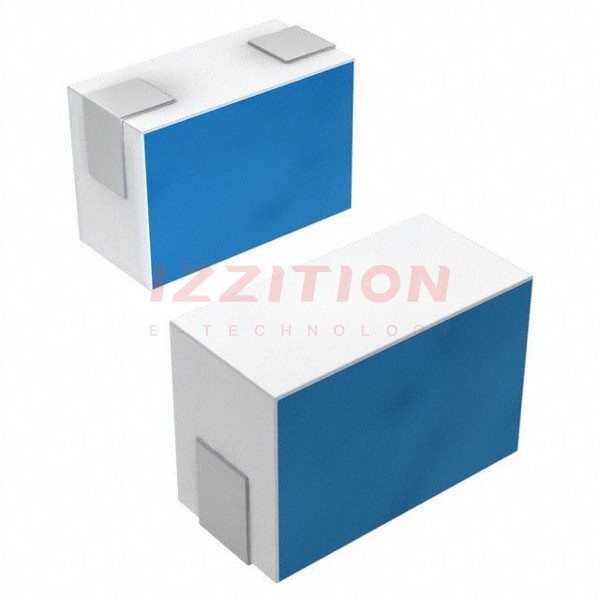

| Part Number | LQP03TN10NJZ2D | LQP03TN16NJZ2D | LQP03TN20NJZ2D | LQP03TN18NJZ2D | LQP03TN15NJZ2D | LQP03TN13NJZ2D | LQP03TN11NJZ2D | LQP03TN12NJZ2D | LQP03TN10NHZ2D | LQP03TN10NJ02D |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - | - | Thick Film | Thick Film |
| Material - Core | - | - | - | - | - | - | - | - | Non-Magnetic | Non-Magnetic |
| Inductance | - | - | - | - | - | - | - | - | 10 nH | 10 nH |
| Tolerance | - | - | - | - | - | - | - | - | ±3% | ±5% |
| Current Rating (Amps) | - | - | - | - | - | - | - | - | 250 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - | - | - | Unshielded | Unshielded |
| DC Resistance (DCR) | - | - | - | - | - | - | - | - | 700mOhm Max | 700mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | 14 @ 500MHz | 14 @ 500MHz |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | 3.2GHz | 3.2GHz |
| Ratings | - | - | - | - | - | - | - | - | AEC-Q200 | - |
| Operating Temperature | - | - | - | - | - | - | - | - | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | - | - | - | - | - | - | - | - | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | - | - | - | - | - | - | - | - | Surface Mount | Surface Mount |
| Package / Case | - | - | - | - | - | - | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | - | - | - | - | - | - | - | - | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | - | - | - | - | - | - | - | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | 0.013" (0.33mm) | 0.013" (0.33mm) |
