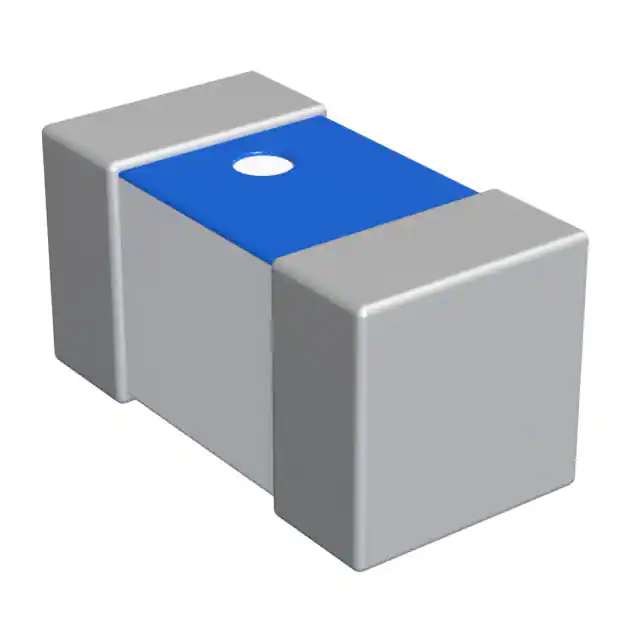

| Part Number | LQP03TG68NJ02D | LQP03TG18NJ02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 68 nH | 18 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 90 mA | 160 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 6.25Ohm Max | 2.28Ohm Max |
| Q @ Freq | 6 @ 300MHz | 11 @ 500MHz |
| Frequency - Self Resonant | 1.1GHz | 2.8GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 300 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) |
