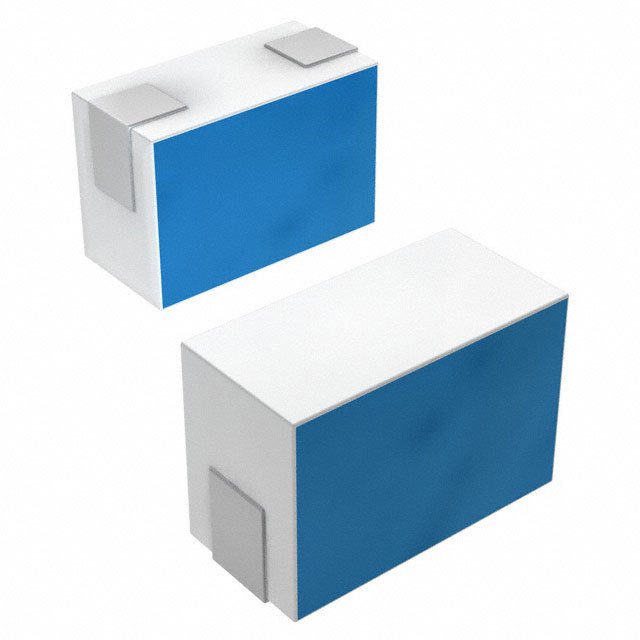

| Part Number | LQP03HQ82NH02D | LQP03HQ22NH02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Thin Film | Thick Film |
| Material - Core | - | Non-Magnetic |
| Inductance | 82 nH | 22 nH |
| Tolerance | ±3% | ±3% |
| Current Rating (Amps) | 100 mA | 250 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 5Ohm Max | 820mOhm Max |
| Q @ Freq | 10 @ 300MHz | 20 @ 500MHz |
| Frequency - Self Resonant | 1GHz | 3GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 300 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | - | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.42mm) | 0.017" (0.42mm) |
