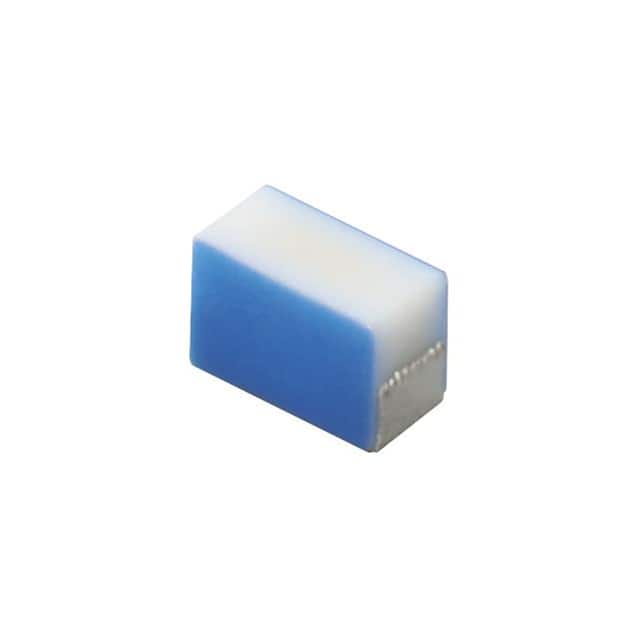

| Part Number | LQP03HQ2N0W02D | LQP03HQ1N0W02D | LQP03HQ2N0B02D | LQP03HQ2N0C02D |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Thin Film | Thick Film | Thick Film | Thick Film |
| Material - Core | - | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 2 nH | 1 nH | 2 nH | 2 nH |
| Tolerance | ±0.05nH | ±0.05nH | ±0.1nH | ±0.2nH |
| Current Rating (Amps) | 600 mA | 1.1 A | 600 mA | 600 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm Max | 40mOhm Max | 120mOhm Max | 120mOhm Max |
| Q @ Freq | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz |
| Frequency - Self Resonant | 9GHz | 16GHz | 9GHz | 9GHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) |
