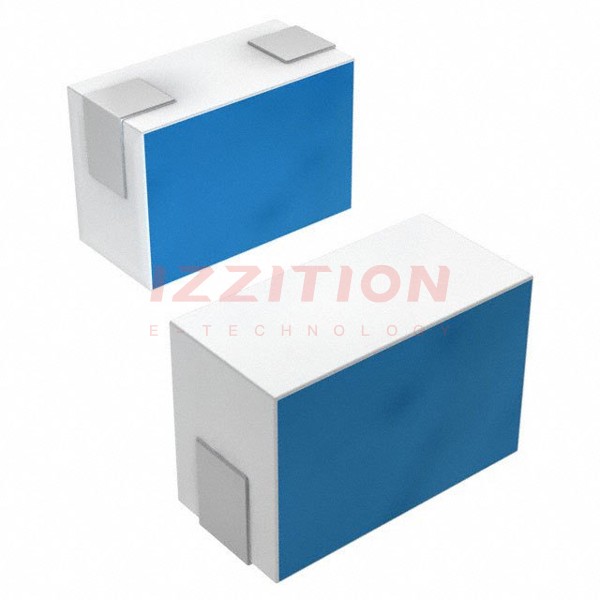

| Part Number | LQP03HQ10NJ02D | LQP03HQ16NJ02D | LQP03HQ15NJ02D | LQP03HQ11NJ02D | LQP03HQ12NJ02D | LQP03HQ18NJ02D | LQP03HQ20NJ02D | LQP03HQ13NJ02D | LQP03HQ10NH02D |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 10 nH | 16 nH | 15 nH | 11 nH | 12 nH | 18 nH | 20 nH | 13 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Current Rating (Amps) | 300 mA | 250 mA | 300 mA | 300 mA | 300 mA | 250 mA | 250 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | 800mOhm Max | 700mOhm Max | 500mOhm Max | 500mOhm Max | 800mOhm Max | 800mOhm Max | 500mOhm Max | 400mOhm Max |
| Q @ Freq | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz | 20 @ 500MHz |
| Frequency - Self Resonant | 4.5GHz | 3.5GHz | 3.5GHz | 4GHz | 4GHz | 3.5GHz | 3GHz | 4GHz | 4.5GHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) | 0.017" (0.42mm) |
