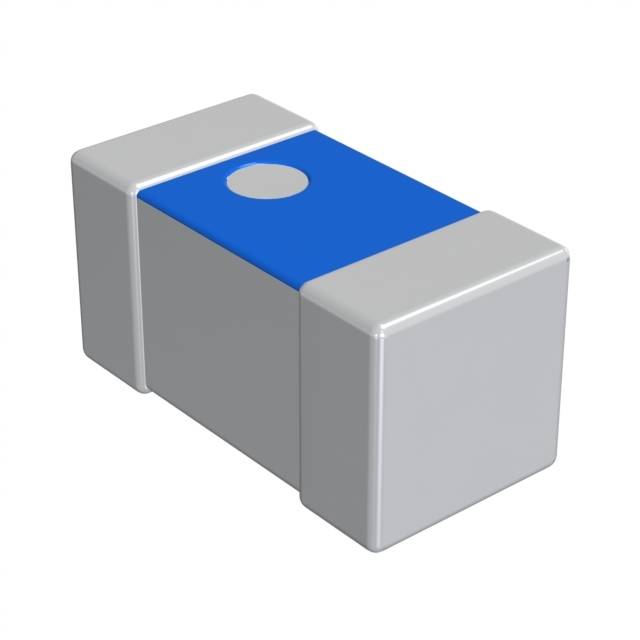

| Part Number | LQP02TQ2N7C02D | LQP02TQ0N7C02D | LQP02TQ2N0C02D | LQP02TQ2N2C02D | LQP02TQ2N4C02D | LQP02TQ2N7B02D |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 2.7 nH | 0.7 nH | 2 nH | 2.2 nH | 2.4 nH | 2.7 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±0.2nH | ±0.2nH | ±0.2nH | ±0.1nH |
| Current Rating (Amps) | 370 mA | 630 mA | 380 mA | 380 mA | 370 mA | 370 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 400mOhm Max | 150mOhm Max | 300mOhm Max | 300mOhm Max | 400mOhm Max | 400mOhm Max |
| Q @ Freq | 10 @ 500MHz | 10 @ 500MHz | 10 @ 500MHz | 10 @ 500MHz | 10 @ 500MHz | 10 @ 500MHz |
| Frequency - Self Resonant | 11.5GHz | 16.6GHz | 13GHz | 13GHz | 13GHz | 11.5GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.009" (0.23mm) | 0.009" (0.23mm) | 0.009" (0.23mm) | 0.009" (0.23mm) | 0.009" (0.23mm) | 0.009" (0.23mm) |
