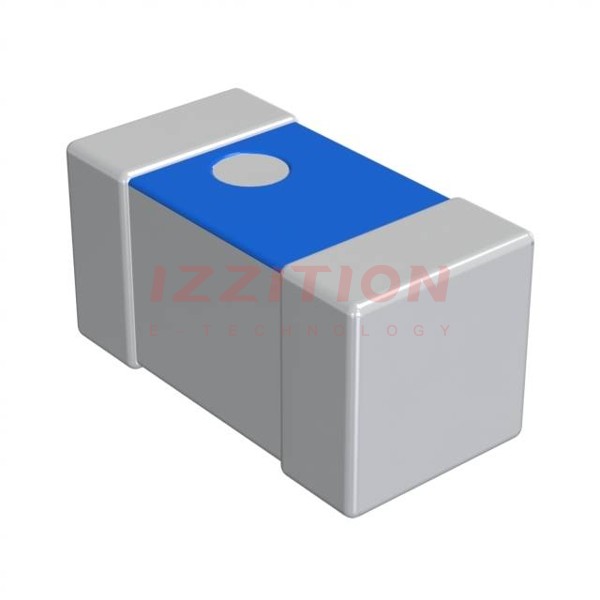

| Part Number | LQP02TQ10NH02D | LQP02TQ10NJ02D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Thick Film | Thick Film |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 10 nH | 10 nH |
| Tolerance | ±3% | ±5% |
| Current Rating (Amps) | 170 mA | 170 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.7Ohm Max | 1.7Ohm Max |
| Q @ Freq | 10 @ 500MHz | 10 @ 500MHz |
| Frequency - Self Resonant | 5.5GHz | 5.5GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.009" (0.23mm) | 0.009" (0.23mm) |
