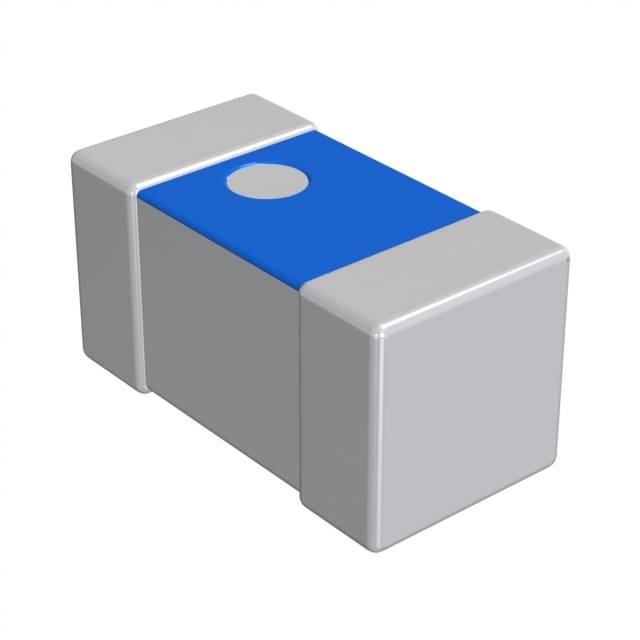

| Part Number | LQP02HQ7N5H02L | LQP02HQ7N5J02L | LQP02HQ7N5H02E |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film |
| Material - Core | - | - | Non-Magnetic |
| Inductance | 7.5 nH | 7.5 nH | 7.5 nH |
| Tolerance | ±3% | ±5% | ±3% |
| Current Rating (Amps) | 300 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 500mOhm Max | 500mOhm Max | 500mOhm Max |
| Q @ Freq | 13 @ 500MHz | 13 @ 500MHz | 13 @ 500MHz |
| Frequency - Self Resonant | 5.6GHz | 5.6GHz | 5.6GHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) |
