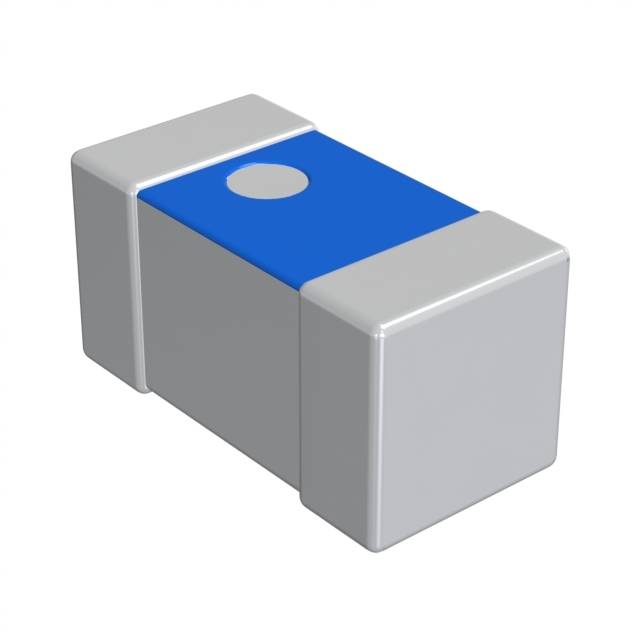

| Part Number | LQP02HQ4N2C02L | LQP02HQ2N2C02L | LQP02HQ3N2C02L | LQP02HQ4N0C02L | LQP02HQ4N1C02L | LQP02HQ4N2B02L | LQP02HQ4N2C02E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Material - Core | - | - | - | - | - | - | Non-Magnetic |
| Inductance | 4.2 nH | 2.2 nH | 3.2 nH | 4 nH | 4.1 nH | 4.2 nH | 4.2 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±0.2nH | ±0.2nH | ±0.2nH | ±0.1nH | ±0.2nH |
| Current Rating (Amps) | 350 mA | 500 mA | 400 mA | 350 mA | 350 mA | 350 mA | 350 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 350mOhm Max | 200mOhm Max | 250mOhm Max | 350mOhm Max | 350mOhm Max | 350mOhm Max | 350mOhm Max |
| Q @ Freq | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz |
| Frequency - Self Resonant | 6.9GHz | 9.8GHz | 8.5GHz | 6.9GHz | 6.9GHz | 6.9GHz | 6.9GHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) |
