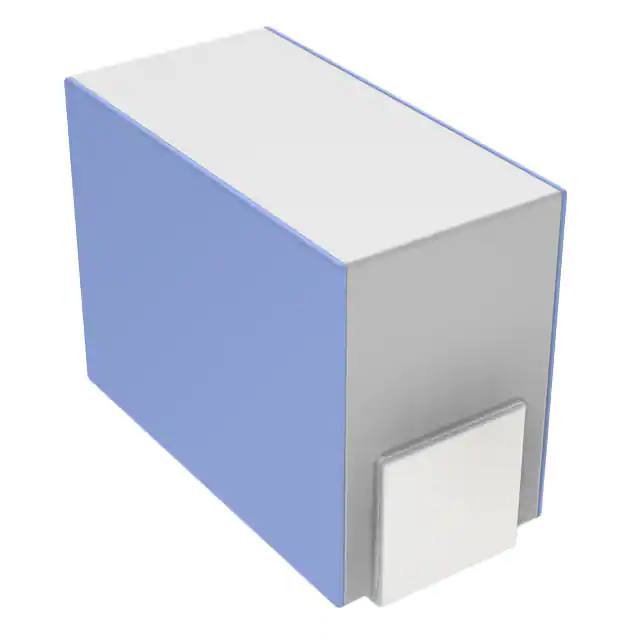

| Part Number | LQP02HQ2N4W02L | LQP02HQ2N5W02L | LQP02HQ1N4W02L | LQP02HQ2N4B02L | LQP02HQ2N4C02L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Thin Film | Thin Film | Thick Film | Thick Film | Thick Film |
| Material - Core | - | - | - | - | - |
| Inductance | 2.4 nH | 2.5 nH | 1.4 nH | 2.4 nH | 2.4 nH |
| Tolerance | ±0.05nH | ±0.05nH | ±0.05nH | ±0.1nH | ±0.2nH |
| Current Rating (Amps) | 450 mA | 450 mA | 700 mA | 450 mA | 450 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 200mOhm Max | 200mOhm Max | 80mOhm Max | 200mOhm Max | 200mOhm Max |
| Q @ Freq | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz |
| Frequency - Self Resonant | 9.5GHz | 9.5GHz | 12.7GHz | 9.5GHz | 9.5GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) |
