Please send RFQ , we will respond immediately.

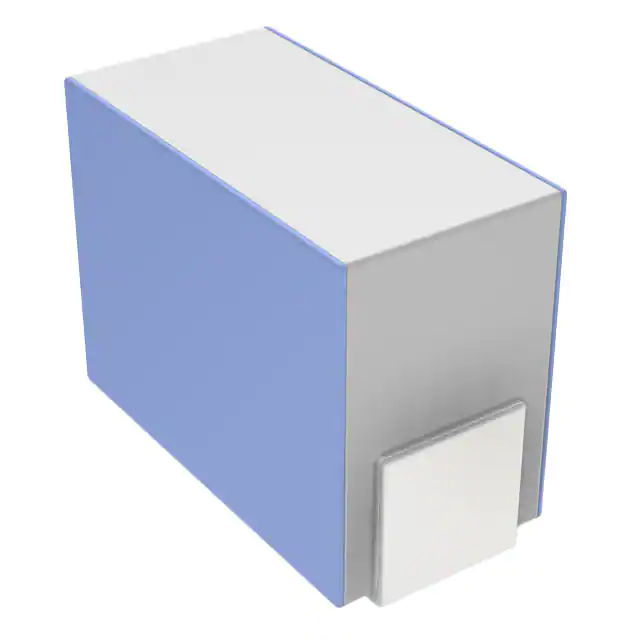

| Part Number | LQP02HQ27NH02E | LQP02HQ47NH02E | LQP02HQ20NH02E | LQP02HQ22NH02E | LQP02HQ24NH02E |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Thin Film | Thin Film | Thick Film | Thick Film | Thin Film |
| Material - Core | - | - | Non-Magnetic | Non-Magnetic | - |
| Inductance | 27 nH | 47 nH | 20 nH | 22 nH | 24 nH |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
| Current Rating (Amps) | 120 mA | 100 mA | 140 mA | 140 mA | 120 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | - | - | 2.26Ohm Max | 2.26Ohm Max | - |
| Q @ Freq | - | - | 12 @ 500MHz | 12 @ 500MHz | - |
| Frequency - Self Resonant | - | - | 3GHz | 3GHz | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 300 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) |
