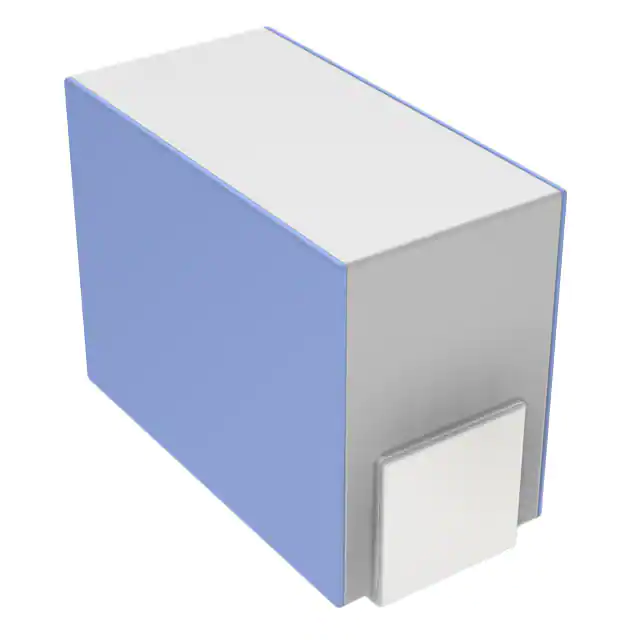

| Part Number | LQP02HQ0N3B02E | LQP02HQ0N4B02E | LQP02HQ0N5B02E | LQP02HQ0N6B02E | LQP02HQ0N7B02E | LQP02HQ0N8B02E | LQP02HQ0N9B02E | LQP02HQ1N3B02E | LQP02HQ0N2B02E |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Thin Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thin Film |
| Material - Core | - | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | - |
| Inductance | 0.3 nH | 0.4 nH | 0.5 nH | 0.6 nH | 0.7 nH | 0.8 nH | 0.9 nH | 1.3 nH | 0.2 nH |
| Tolerance | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 1 A | 1 A | 1 A | 950 mA | 900 mA | 900 mA | 900 mA | 700 mA | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 30mOhm Max | 40mOhm Max | 50mOhm Max | 50mOhm Max | 50mOhm Max | 50mOhm Max | 80mOhm Max | 10mOhm Max |
| Q @ Freq | - | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | 14 @ 500MHz | - |
| Frequency - Self Resonant | - | 17GHz | 17GHz | 17GHz | 15.5GHz | 15.5GHz | 19GHz | 12.7GHz | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) | 0.013" (0.32mm) |
