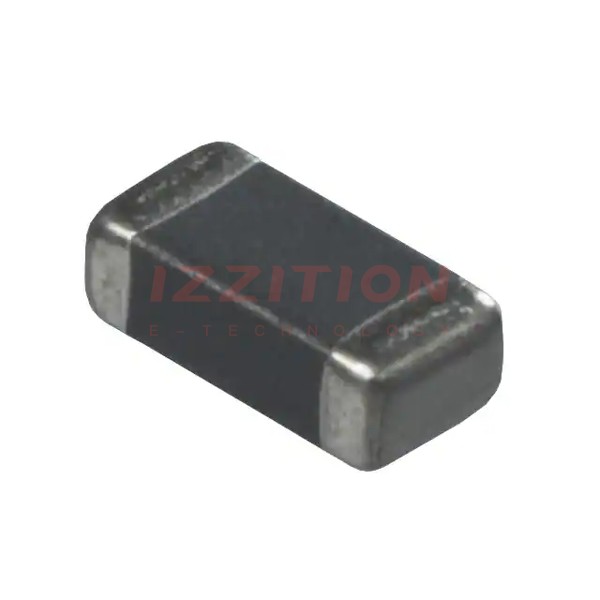

| Part Number | LQM31PNR47M00L | LQM31PNR47MC0L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | - | - |
| Inductance | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.4 A | 1.3 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 87.5mOhm Max | 107mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 80MHz | 90MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) |
