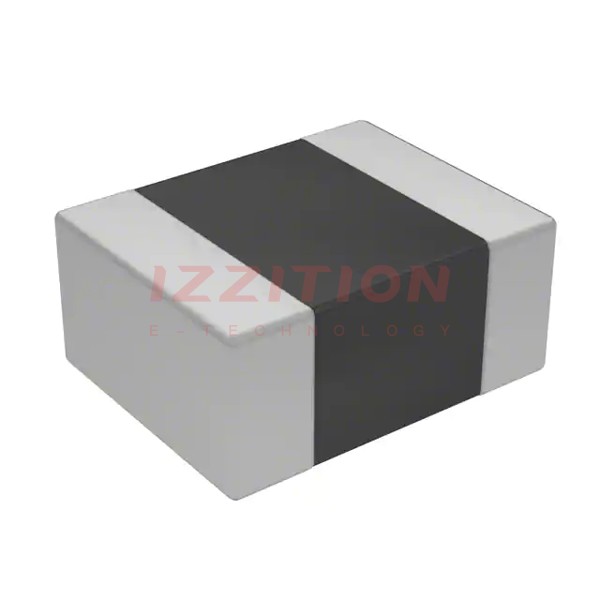

| Part Number | LQM2MPNR47MGHL | LQM21PNR47MGHL | LQM2HPNR47MGHL | LQM2MPNR47MEHL | LQM2MPNR47MG0L |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 3.1 A | 2.6 A | 2.2 A | 1.2 A |
| Current - Saturation (Isat) | 3.4A | 1.8A | 4.5A | 4A | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 46mOhm Max | 50mOhm Max | 50mOhm Max | 69mOhm Max | 75mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 80MHz | 80MHz | 80MHz | 80MHz | 100MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0805 (2012 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0805 (2012 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.031" (0.80mm) | 0.039" (1.00mm) |
