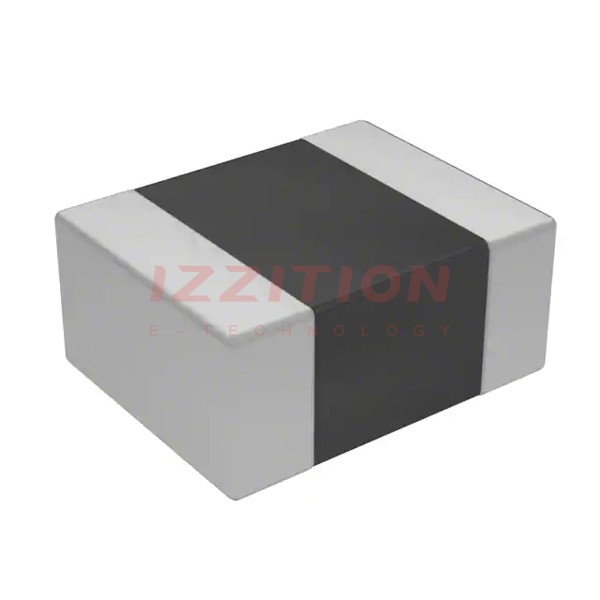

| Part Number | LQM2MPNR24MEHL | LQM2MPNR24MGHL | LQM2HPNR24MEHL |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 240 nH | 240 nH | 240 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 3.4 A | 3 A |
| Current - Saturation (Isat) | 4.5A | 4.8A | 4.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 34mOhm Max | 25mOhm Max | 34mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 130MHz | 130MHz | 130MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.039" (1.00mm) | 0.031" (0.80mm) |
