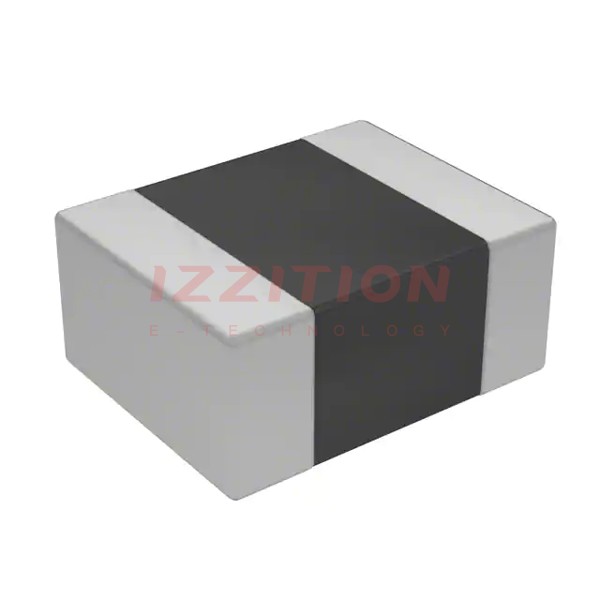

| Part Number | LQM2MPN2R2MGHL | LQM21PN2R2MGHL | LQM2HPN2R2MGHL | LQM2MPN2R2MDHL | LQM2MPN2R2MEHL | LQM2MPN2R2MG0L |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1 A | 1.3 A | 1.5 A | 1.27 A | 1.3 A | 1.2 A |
| Current - Saturation (Isat) | 1.3A | 450mA | 1.5A | 680mA | 800mA | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 263mOhm Max | 156mOhm Max | 138mOhm Max | 250mOhm Max | 188mOhm Max | 138mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz | 30MHz | 40MHz | 30MHz | 40MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0805 (2012 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0805 (2012 Metric) | 1008 (2520 Metric) | - | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.028" (0.70mm) | 0.031" (0.80mm) | 0.039" (1.00mm) |
