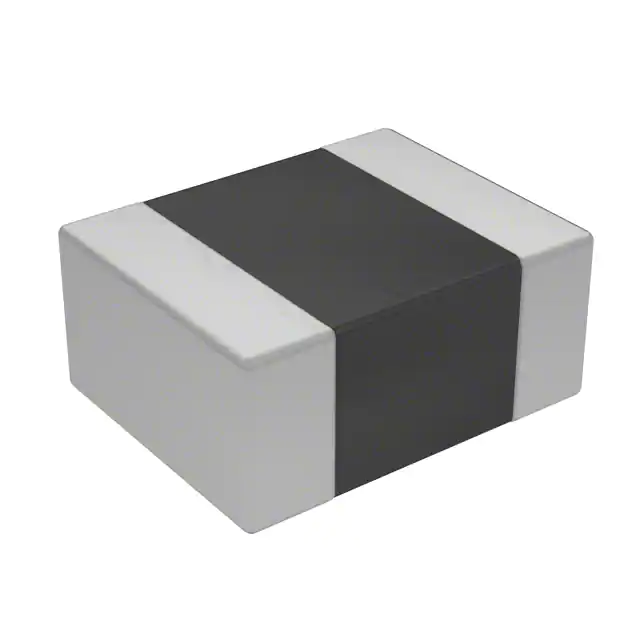

Murata Electronics-LQM2MPN1R5MGHL - Fixed Inductors Product Specifications and Latest Quotes

Part Number	LQM2MPN1R5MGHL	LQM21PN1R5MGHL	LQM2HPN1R5MGHL	LQM2MPN1R0MGHL	LQM2MPN1R5MEHL	LQM2MPN1R5MG0L
Manufacturer	Murata Electronics	Murata Electronics	Murata Electronics	Murata Electronics	Murata Electronics	Murata Electronics
Product Status	Active	Active	Active	Active	Active	Active
Type	Multilayer	-	Multilayer	Multilayer	Multilayer	Multilayer
Material - Core	Ferrite	-	Ferrite	Ferrite	Ferrite	Ferrite
Inductance	1.5 µH	-	1.5 µH	1 µH	1.5 µH	1.5 µH
Tolerance	±20%	-	±20%	±20%	±20%	±20%
Current Rating (Amps)	1.5 A	-	2 A	1.9 A	1.45 A	1.2 A
Current - Saturation (Isat)	1.8A	-	1.5A	2A	1.2A	-
Shielding	Shielded	-	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	130mOhm Max	-	81mOhm Max	80mOhm Max	150mOhm Max	138mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	50MHz	-	40MHz	60MHz	40MHz	50MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz	-	1 MHz	1 MHz	1 MHz	1 MHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	-	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	0806 (2016 Metric)	-	1008 (2520 Metric)	0806 (2016 Metric)	0806 (2016 Metric)	0805 (2012 Metric)
Supplier Device Package	0806 (2016 Metric)	-	1008 (2520 Metric)	0806 (2016 Metric)	0806 (2016 Metric)	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)	-	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.079" L x 0.063" W (2.00mm x 1.60mm)	0.079" L x 0.063" W (2.00mm x 1.60mm)	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.039" (1.00mm)	-	0.039" (1.00mm)	0.039" (1.00mm)	0.031" (0.80mm)	0.039" (1.00mm)

Murata Electronics LQM2MPN1R5MGHL
