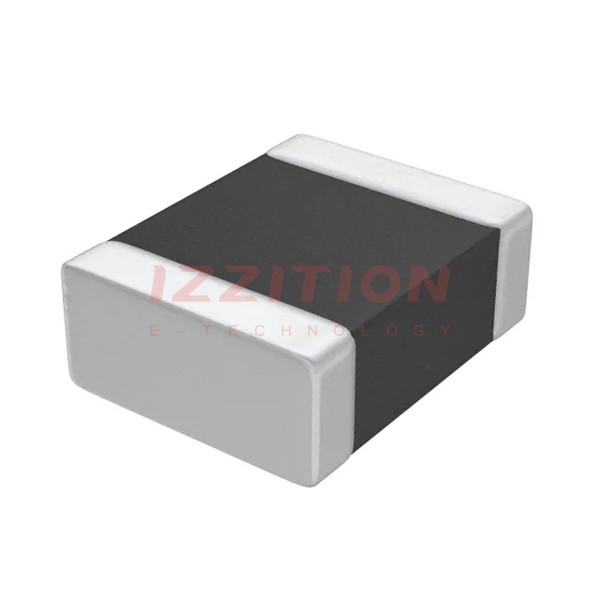

| Part Number | LQM2HPNR47MJHL | LQM2HPNR47MCHL | LQM2HPNR47MEHL | LQM2HPNR47MGHL |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | - | Multilayer | Multilayer |
| Material - Core | Ferrite | - | Ferrite | Ferrite |
| Inductance | 470 nH | - | 470 nH | 470 nH |
| Tolerance | ±20% | - | ±20% | ±20% |
| Current Rating (Amps) | 2.7 A | - | 2.2 A | 2.6 A |
| Current - Saturation (Isat) | 3.2A | - | 4A | 4.5A |
| Shielding | Shielded | - | Shielded | Shielded |
| DC Resistance (DCR) | 46mOhm Max | - | 69mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 70MHz | - | 80MHz | 80MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | - | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | - | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | - | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | - | 0.031" (0.80mm) | 0.039" (1.00mm) |
