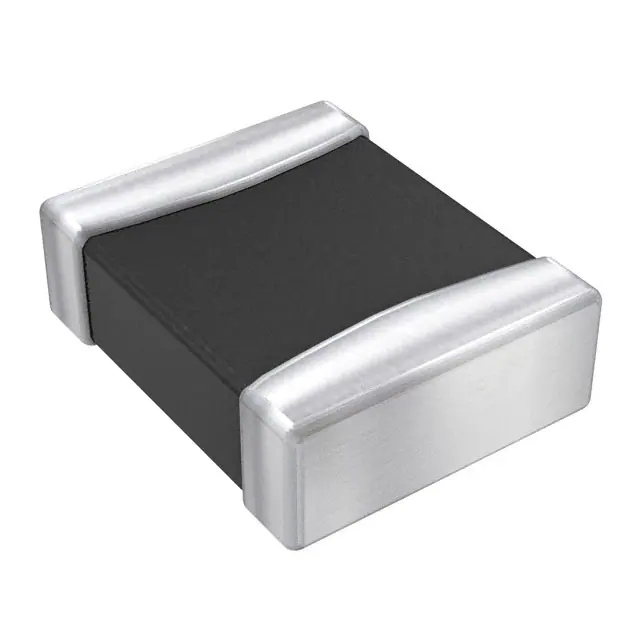

| Part Number | LQM2HPNR47MEHL | LQM2HPNR47MGHL | LQM2HPNR47MJHL | LQM2MPNR47MEHL | LQM2HPNR47MCHL |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | - |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | - |
| Current Rating (Amps) | 2.2 A | 2.6 A | 2.7 A | 2.2 A | - |
| Current - Saturation (Isat) | 4A | 4.5A | 3.2A | 4A | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | - |
| DC Resistance (DCR) | 69mOhm Max | 50mOhm Max | 46mOhm Max | 69mOhm Max | - |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 80MHz | 80MHz | 70MHz | 80MHz | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | - |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | - |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.031" (0.80mm) | - |
