Please send RFQ , we will respond immediately.

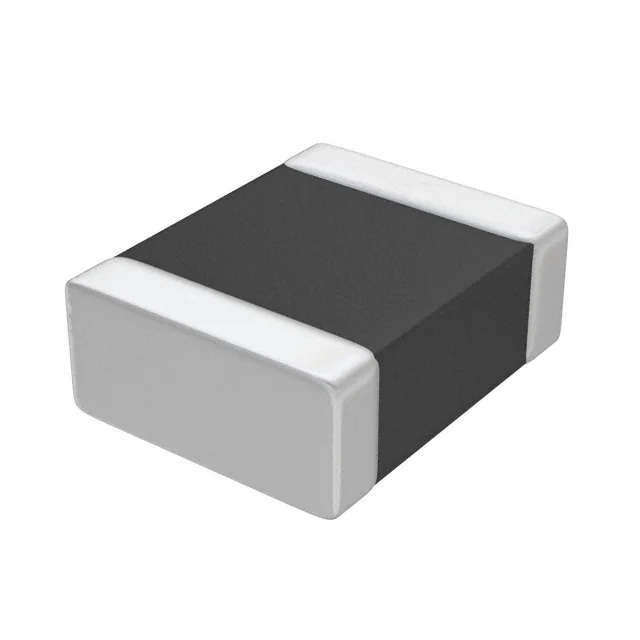

| Part Number | LQM2HPNR24MCHL | LQM2HPNR24MGHL | LQM2HPNR24MEHL |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | - | Multilayer | Multilayer |
| Material - Core | - | Ferrite | Ferrite |
| Inductance | - | 240 nH | 240 nH |
| Tolerance | - | ±20% | ±20% |
| Current Rating (Amps) | - | 3.3 A | 3 A |
| Current - Saturation (Isat) | - | 4.5A | 4.5A |
| Shielding | - | Shielded | Shielded |
| DC Resistance (DCR) | - | 30mOhm Max | 34mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | 80MHz | 130MHz |
| Ratings | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | - | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | - | Surface Mount | Surface Mount |
| Package / Case | - | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | - | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | - | 0.039" (1.00mm) | 0.031" (0.80mm) |
