Please send RFQ , we will respond immediately.

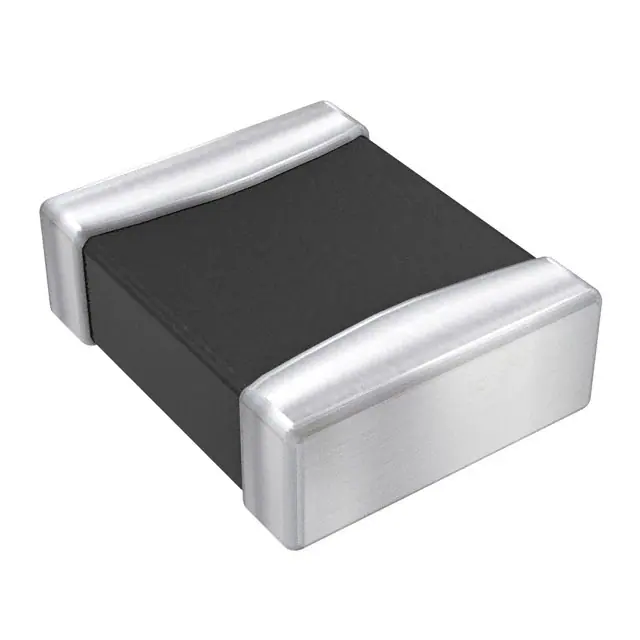

| Part Number | LQM2HPN2R2MEHL | LQM2HPN2R2MJHL | LQM2MPN2R2MEHL | LQM2HPN2R2MGHL | LQM2HPN2R2MCHL |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | - |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | - |
| Current Rating (Amps) | 1.3 A | 1.5 A | 1.3 A | 1.5 A | - |
| Current - Saturation (Isat) | 800mA | 1.4A | 800mA | 1.5A | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | - |
| DC Resistance (DCR) | 188mOhm Max | 138mOhm Max | 188mOhm Max | 138mOhm Max | - |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 30MHz | 30MHz | 30MHz | 30MHz | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | - |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) | - |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.047" (1.20mm) | 0.031" (0.80mm) | 0.039" (1.00mm) | - |
