Please send RFQ , we will respond immediately.

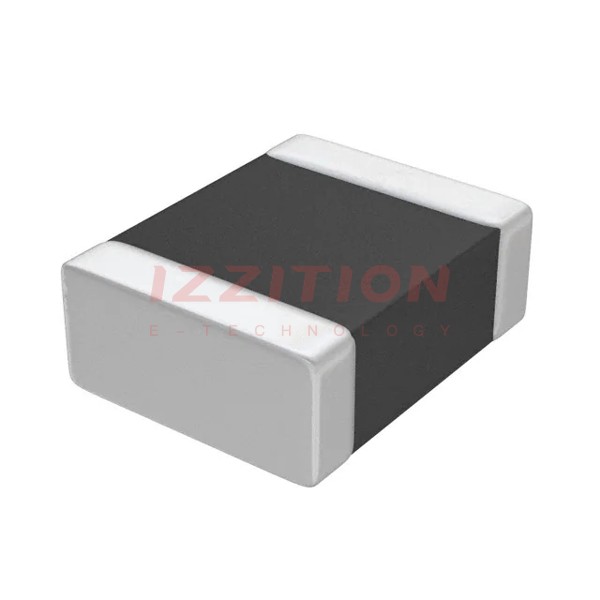

| Part Number | LQM2HPN1R5MGHL | LQM2MPN1R5MGHL | LQM21PN1R5MGHL | LQM2HPN1R0MGHL | LQM2HPN1R5MCHL | LQM2HPN1R5MEHL | LQM2HPN1R5MG0L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | - | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | - | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.5 µH | - | 1 µH | 1.5 µH | 1.5 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | - | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2 A | 1.5 A | - | 2.3 A | 950 mA | 1.45 A | 1.5 A |
| Current - Saturation (Isat) | 1.5A | 1.8A | - | 2A | 600mA | 1.2A | - |
| Shielding | Shielded | Shielded | - | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 81mOhm Max | 130mOhm Max | - | 63mOhm Max | 360mOhm Max | 150mOhm Max | 88mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | 40MHz | 50MHz | - | 50MHz | 40MHz | 40MHz | 50MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | - | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 0806 (2016 Metric) | - | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 0806 (2016 Metric) | - | 1008 (2520 Metric) | 1008 | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | - | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.031" (0.80mm) | 0.039" (1.00mm) |
