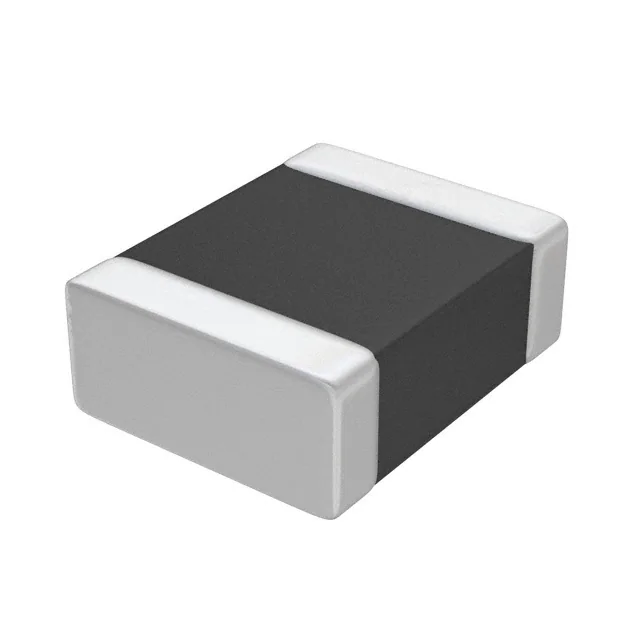

| Part Number | LQM2HPN1R0MJCL | LQM2HPN1R0MJHL | LQM2HPN1R0MGCL | LQM2HPN1R0MJ0L |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | - | Ferrite | Ferrite | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | 2.3 A | 1.5 A | 1.5 A |
| Current - Saturation (Isat) | - | 2.1A | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 108mOhm Max | 63mOhm Max | 100mOhm Max | 113mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 50MHz | 50MHz | 50MHz | 70MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -30°C ~ 85°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
