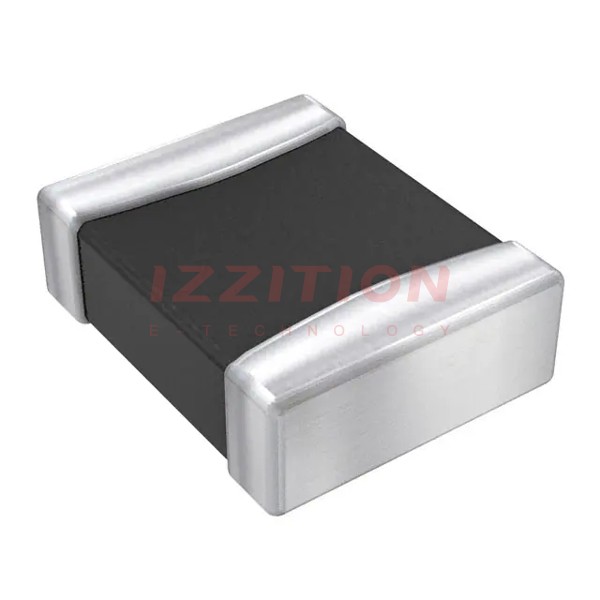

| Part Number | LQM2HPN1R0MEHL | LQM2HPN1R0MJHL | LQM2MPN1R0MEHL | LQM2HPN1R5MEHL | LQM2HPN1R0MGHL | LQM2HPN1R0MCHL |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1.5 µH | 1 µH | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | - |
| Current Rating (Amps) | 1.65 A | 2.3 A | 1.65 A | 1.45 A | 2.3 A | - |
| Current - Saturation (Isat) | 1.9A | 2.1A | 1.9A | 1.2A | 2A | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | - |
| DC Resistance (DCR) | 119mOhm Max | 63mOhm Max | 119mOhm Max | 150mOhm Max | 63mOhm Max | - |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 50MHz | 50MHz | 50MHz | 40MHz | 50MHz | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | - |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | - |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 0806 (2016 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.047" (1.20mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.039" (1.00mm) | - |
