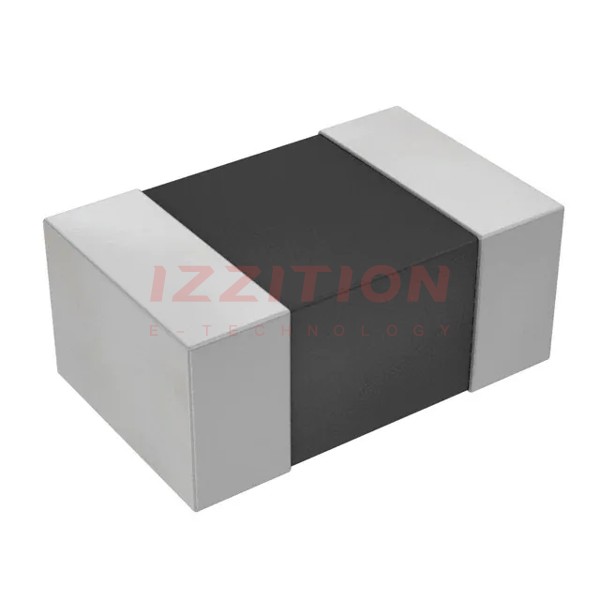

| Part Number | LQM21PNR54MG0D | LQM21PZR54MG0D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | - |
| Material - Core | Ferrite | - |
| Inductance | 540 nH | - |
| Tolerance | ±20% | - |
| Current Rating (Amps) | 1.3 A | - |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | - |
| DC Resistance (DCR) | 94mOhm Max | - |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 100MHz | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | - |
| Inductance Frequency - Test | 1 MHz | - |
| Features | - | - |
| Mounting Type | Surface Mount | - |
| Package / Case | 0805 (2012 Metric) | - |
| Supplier Device Package | 0805 (2012 Metric) | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
| Height - Seated (Max) | 0.039" (1.00mm) | - |
