Please send RFQ , we will respond immediately.

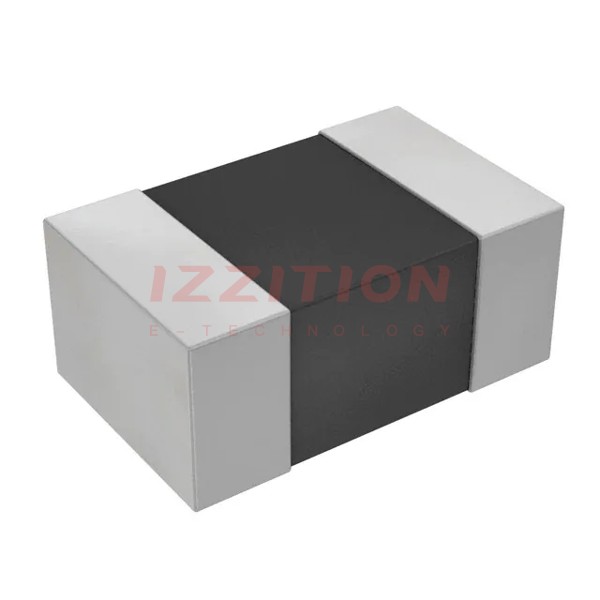

| Part Number | LQM21PNR47MG0D | LQM21PZR47MG0D | LQM21PNR47MC0D |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Multilayer | - | Multilayer |
| Material - Core | Ferrite | - | Ferrite |
| Inductance | 470 nH | - | 470 nH |
| Tolerance | ±20% | - | ±20% |
| Current Rating (Amps) | 1.3 A | - | 1.1 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | - | Shielded |
| DC Resistance (DCR) | 94mOhm Max | - | 150mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 100MHz | - | 100MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | - | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | - | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | - | Surface Mount |
| Package / Case | 0805 (2012 Metric) | - | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | - | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | - | 0.022" (0.55mm) |
