Please send RFQ , we will respond immediately.

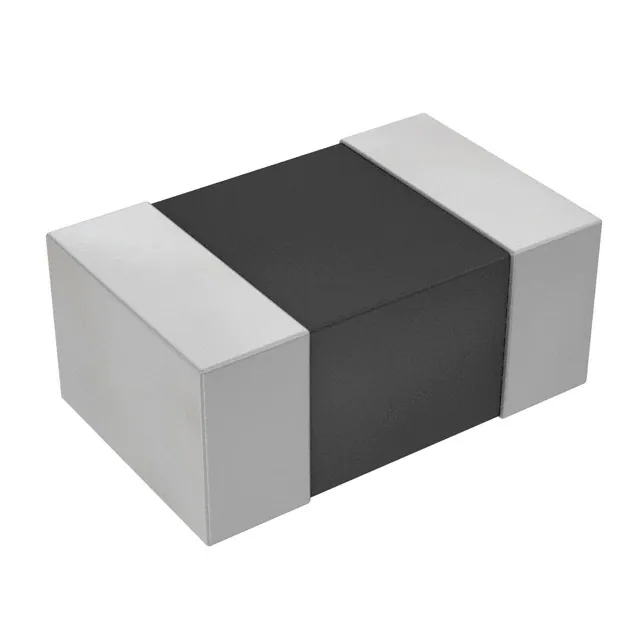

| Part Number | LQM21PN3R3MG0D | LQM21PN3R3MGRD | LQM21PN3R3NG0D | LQM21PZ3R3MG0D |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | - |
| Material - Core | Ferrite | Ferrite | Ferrite | - |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH | - |
| Tolerance | ±20% | ±20% | ±30% | - |
| Current Rating (Amps) | 800 mA | 1 A | 800 mA | - |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | - |
| DC Resistance (DCR) | 207mOhm Max | 188mOhm Max | 207mOhm Max | - |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 30MHz | 30MHz | 30MHz | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | - |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | - |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | - |
