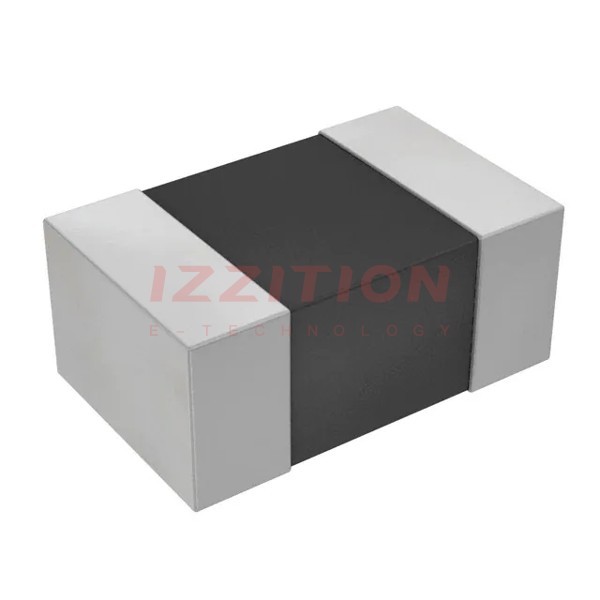

| Part Number | LQM21PN1R0NGCD | LQM21PN1R0NGRD | LQM21PZ1R0NGCD | LQM21PH1R0NGCD |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | - | Multilayer |
| Material - Core | Ferrite | Ferrite | - | Ferrite |
| Inductance | 1 µH | 1 µH | - | 1 µH |
| Tolerance | ±30% | ±30% | - | ±30% |
| Current Rating (Amps) | 900 mA | 1.3 A | - | 1 A |
| Current - Saturation (Isat) | - | - | - | 900mA |
| Shielding | Shielded | Shielded | - | Shielded |
| DC Resistance (DCR) | 125mOhm Max | 82.5mOhm Max | - | 130mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 50MHz | 50MHz | - | 50MHz |
| Ratings | - | - | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | - | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | - | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | - | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | - | 0.039" (1.00mm) |
