Please send RFQ , we will respond immediately.

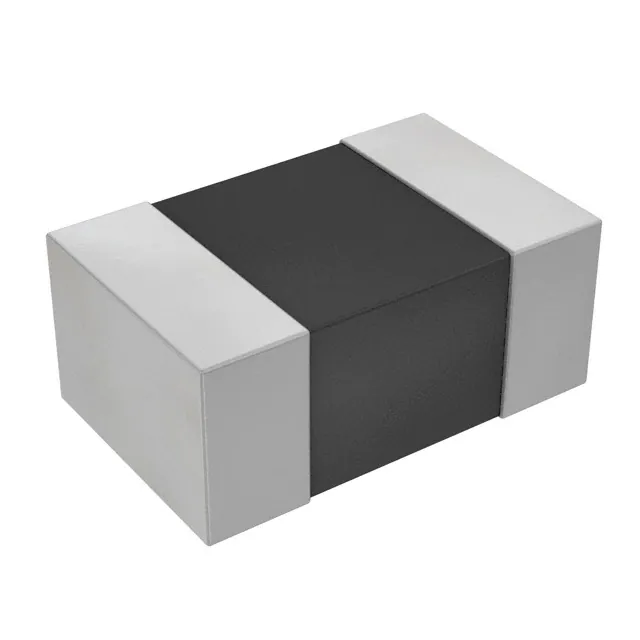

| Part Number | LQM21PN1R0MGHL | LQM2HPN1R0MGHL | LQM21PN1R5MGHL | LQM2MPN1R0MGHL |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | - | Multilayer |
| Material - Core | Ferrite | Ferrite | - | Ferrite |
| Inductance | 1 µH | 1 µH | - | 1 µH |
| Tolerance | ±20% | ±20% | - | ±20% |
| Current Rating (Amps) | 1.7 A | 2.3 A | - | 1.9 A |
| Current - Saturation (Isat) | 1.1A | 2A | - | 2A |
| Shielding | Shielded | Shielded | - | Shielded |
| DC Resistance (DCR) | 100mOhm Max | 63mOhm Max | - | 80mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 60MHz | 50MHz | - | 60MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | - | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 1008 (2520 Metric) | - | 0806 (2016 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 1008 (2520 Metric) | - | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | - | 0.039" (1.00mm) |
