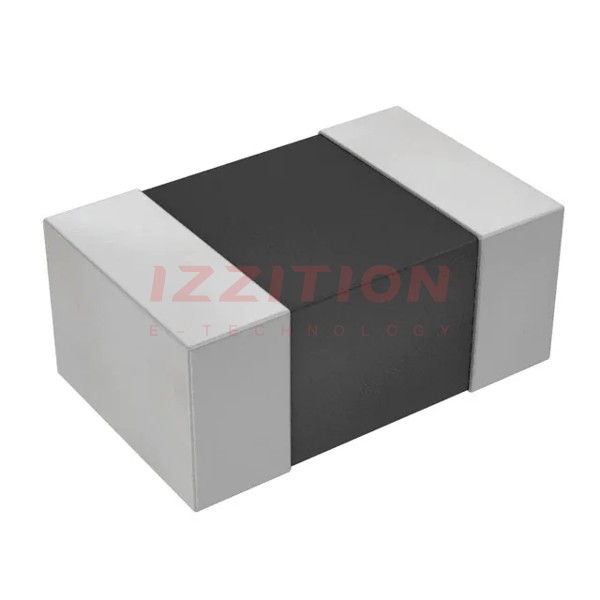

| Part Number | LQM21PH2R2NGCD | LQM21PN2R2NGCD | LQM21PZ2R2NGCD | LQM21PH2R2MGCD |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | - | - |
| Material - Core | Ferrite | Ferrite | - | - |
| Inductance | 2.2 µH | 2.2 µH | - | - |
| Tolerance | ±30% | ±30% | - | - |
| Current Rating (Amps) | 800 mA | 800 mA | - | - |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Shielded | Shielded | - | - |
| DC Resistance (DCR) | 288mOhm Max | 288mOhm Max | - | - |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz | - | - |
| Ratings | AEC-Q200 | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | - | - |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | - |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | - | - |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | - | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.039" (1.00mm) | - | - |
