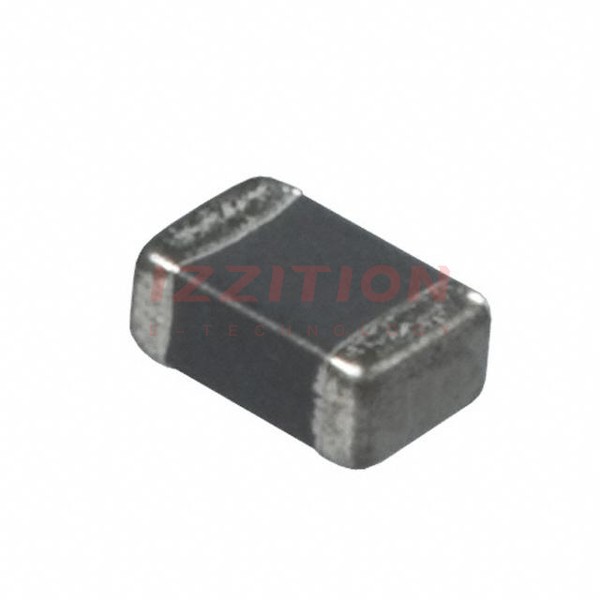

| Part Number | LQM21NNR47K10D | LQM21NNR27K10D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 nH | 270 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 250 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 570mOhm Max | 420mOhm Max |
| Q @ Freq | 25 @ 25MHz | 20 @ 25MHz |
| Frequency - Self Resonant | 150MHz | 200MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) |
