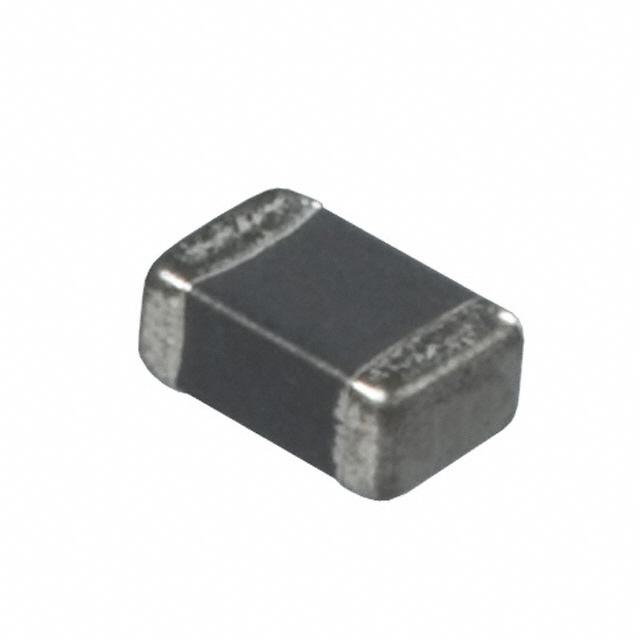

| Part Number | LQM21NNR18K10D | LQM21NNR68K10D | LQM21NNR10K10D | LQM21NNR12K10D | LQM21NNR15K10D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 nH | 680 nH | 100 nH | 120 nH | 150 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 250 mA | 150 mA | 250 mA | 250 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 350mOhm Max | 720mOhm Max | 260mOhm Max | 290mOhm Max | 320mOhm Max |
| Q @ Freq | 20 @ 25MHz | 25 @ 25MHz | 20 @ 25MHz | 20 @ 25MHz | 20 @ 25MHz |
| Frequency - Self Resonant | 250MHz | 125MHz | 340MHz | 310MHz | 270MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.057" (1.45mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
