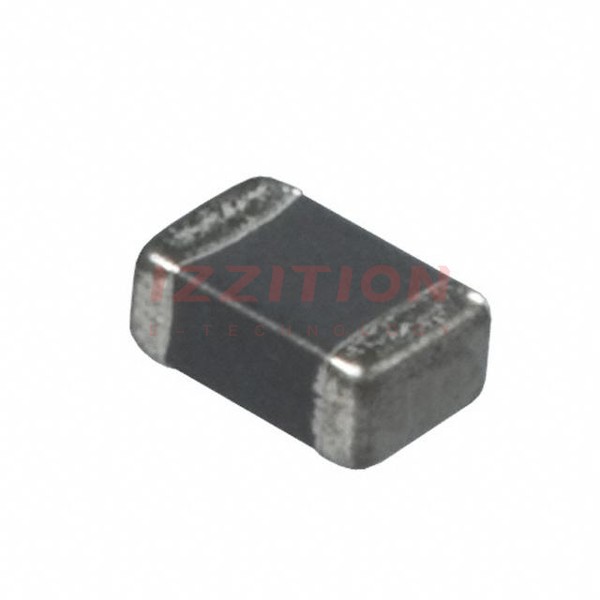

| Part Number | LQM21NN3R9K10L | LQM21NN3R3K10L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 30 mA | 30 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 890mOhm Max | 800mOhm Max |
| Q @ Freq | 45 @ 10MHz | 45 @ 10MHz |
| Frequency - Self Resonant | 53MHz | 59MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz | 10 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) |
