Please send RFQ , we will respond immediately.

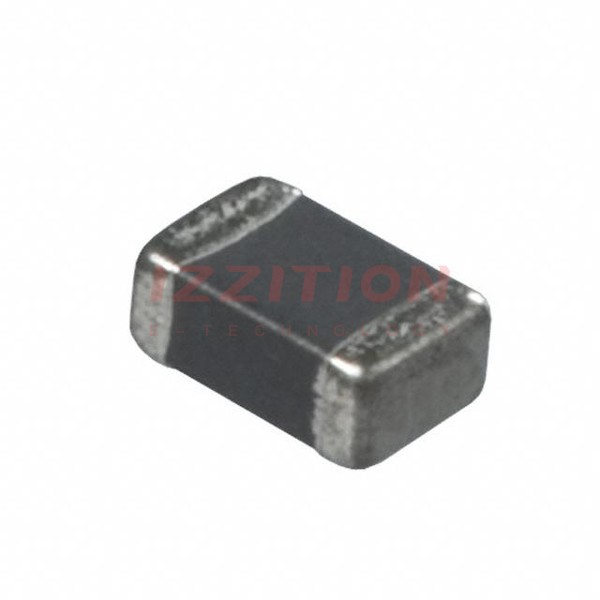

| Part Number | LQM21FN470N00L | LQM21DN470N00L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 47 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 7 mA | 7 mA |
| Current - Saturation (Isat) | 7mA | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 780mOhm Max | 1.2Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 7.5MHz | 7.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) |
