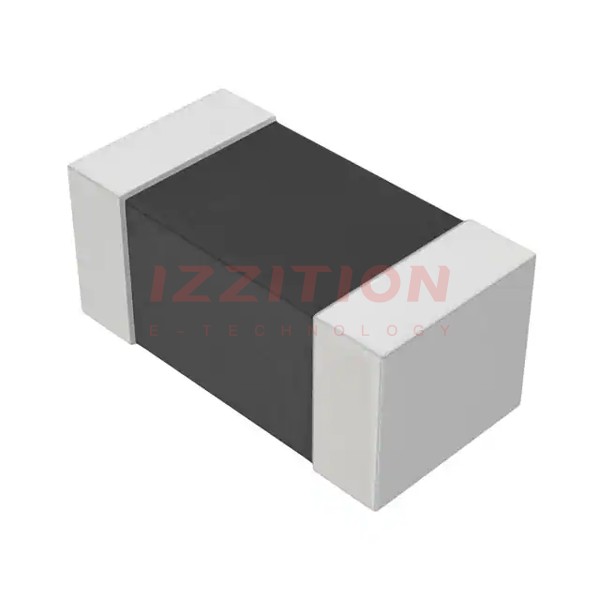

| Part Number | LQM18PN4R7MFRL | LQM18PH4R7MFRL |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 620 mA | 620 mA |
| Current - Saturation (Isat) | - | 70mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 550mOhm Max | 550mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) |
