Please send RFQ , we will respond immediately.

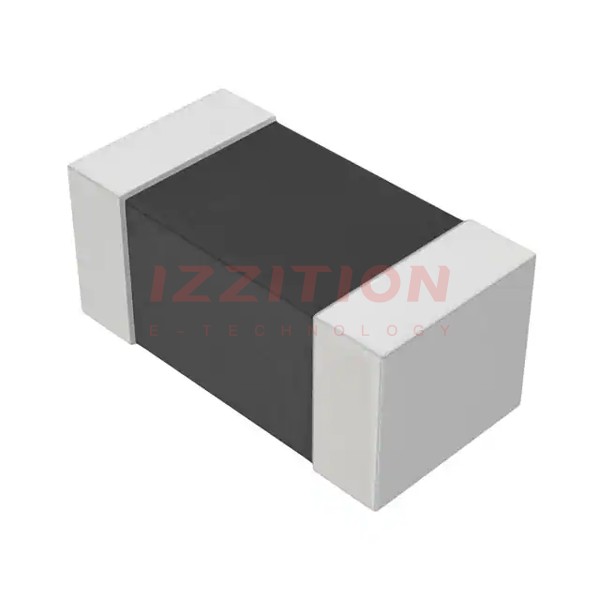

| Part Number | LQM18PN2R2MFHD | LQM18PN2R2MGHD | LQM18PZ2R2MFHD | LQM18PN2R2MDHD |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 700 mA | 1.05 A | 700 mA | 650 mA |
| Current - Saturation (Isat) | 300mA | 250mA | 300mA | 250mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 475mOhm Max | 250mOhm Max | 470mOhm Max | 475mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 80MHz | 70MHz | 80MHz | 60MHz |
| Ratings | - | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.030" (0.75mm) | 0.039" (1.00mm) | 0.037" (0.95mm) | 0.030" (0.75mm) |
