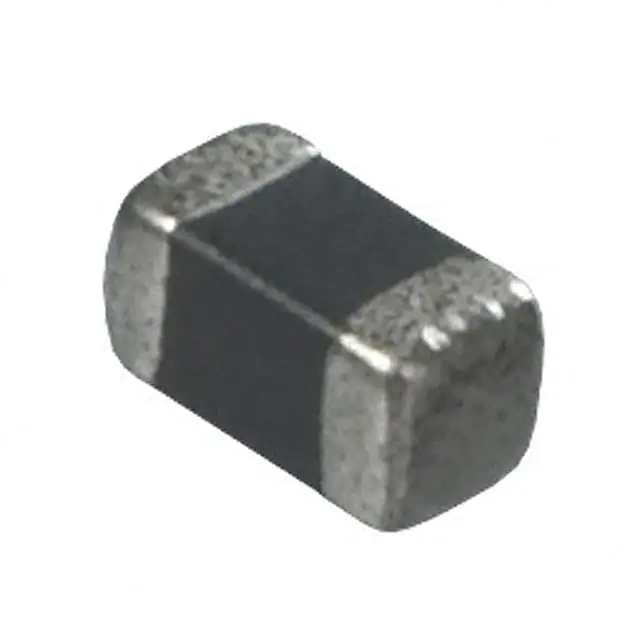

| Part Number | LQM18NNR39K00D | LQM18NNR33K00D |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 nH | 330 nH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 35 mA | 35 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1Ohm Max | 850mOhm Max |
| Q @ Freq | 15 @ 25MHz | 15 @ 25MHz |
| Frequency - Self Resonant | 110MHz | 125MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) |
